358 Anti Climb Fence
It has two product specifications:

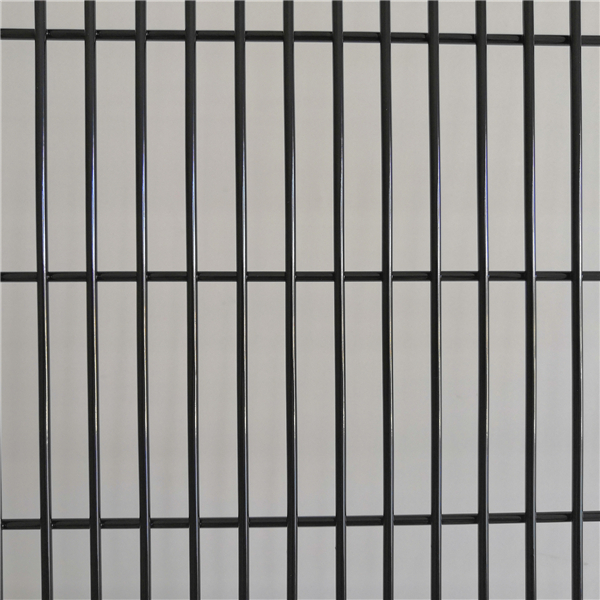

358 Anti Climb Fence76.2mmx12.7mm(3'' x 0.5''), Wire Dia.:4mm(Gauge 8)

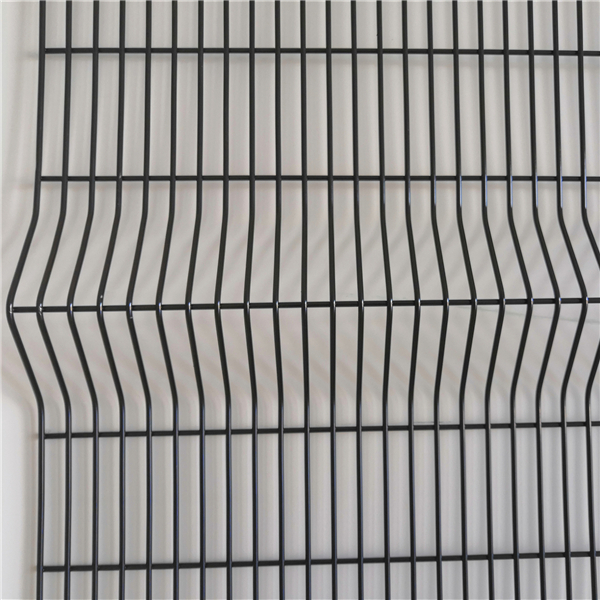

358 security fences are extremely difficult to penetrate, with the small mesh aperture being effectively finger proof, and extremely difficult to attack using conventional hand tools. 358 fences are recognized as one of the most difficult to break through the barrier, because it is difficult to climb. It is called security fencing and high- strength fencing. 358 security fencing panel can be bent in part to enhance the aesthetic effect.
3510 anti climb fence:76.2mmx12.7mm(3'' x 0.5''), Wire Dia.:3mm(Gauge 10)
While 3510 Security Fencing has many of the attributes of 358 Security Fencing and its main strength is it's lighter. Using3mmwire instead of4mmallows even better visibility allowing a wider variety of applications. It’s lighter and cheaper so it's ideal for commercial applications.
Features:
Anti-climb: More small openings, no toe or finger holds.
Anti-cut: robust wire and welded joints make cutting very difficult.
High-strength: the superior welding technique and process control create a stronger fusion between the wires.

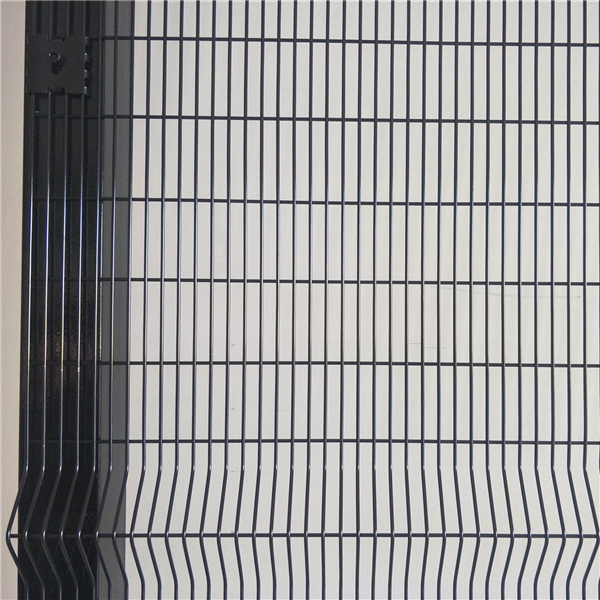

Post type:

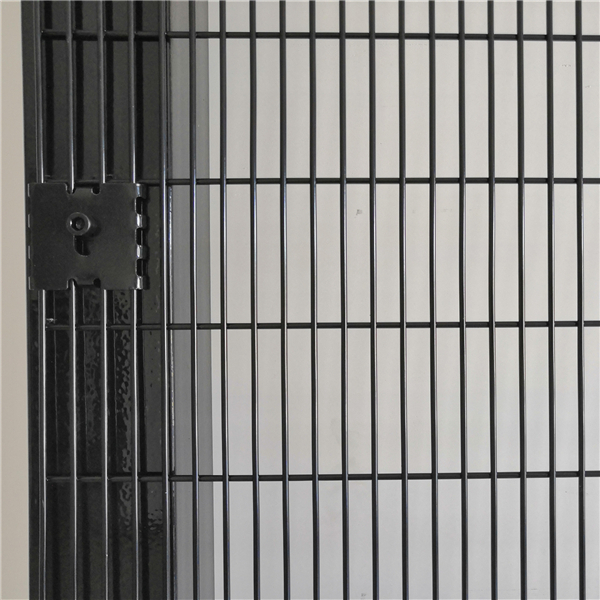

The post type is main square post. The feet are combined with cement support with the rivet.
Specifications:
Panels |
Post |
||||
Fence |
Panel Size |
Post Size |
Post Height |
Total Number of Fixings |
|
Height |
Height/Width |
Length/Width/Thickness |
|
Inters- 1 clamp |
Corners-2 clamp |
m |
mm |
mm |
mm |
|
|
2.0 |
2007 × 2515 |
60×60×2.5mm |
2700 |
7 |
14 |
2.4 |
2400 × 2515 |
60×60×2.5mm |
3100 |
9 |
18 |
3.0 |
2997 × 2515 |
80×80×2.5mm |
3800 |
11 |
22 |
3.3 |
3302 × 2515 |
80×80×2.5mm |
4200 |
12 |
24 |
3.6 |
3607 × 2515 |
100×60×3mm |
4500 |
13 |
26 |
3.6 |
3607 × 2515 |
100×100×3mm |
4500 |
13 |
26 |
4.2 |
4204 × 2515 |
100×100×4mm |
5200 |
15 |
30 |
4.5 |
4496 × 2515 |
100×100×5mm |
5500 |
16 |
32 |
5.2 |
5207 × 2515 |
120×120×5mm |
6200 |
18 |
36 |
Applications:
Bridge anti-climb guarding & guard safety screening
Psychiatric hospital security fencing
Prison security fencing
Factory machine guards
Walkway security fencing
Airport security fencing
Shipping Port Security fencing
Electrical sub-station fencing
Gas pipelines security fence
High security living area or private field fence
